The Chevrolet Vega is a subcompact, four-passenger automobile produced by the Chevrolet division of General Motors for the 1971 thru 1977 model years. Introduced September 10, 1970 as the Vega 2300, the car's name derived from the star Vega and the engine size in cubic centimeters. The Vega's full line of two-door body styles include a hatchback, notchback, wagon, and panel delivery. The Vega 140 CID engine is a 2,287 cc (139.6 cu in) aluminum-block inline-4.
The Vega competed directly with its domestic rivals from Ford and AMC and imports from Toyota and Datsun as well as the aging VW Beetle. Motor Trend in February, 1971 said conservative estimates had placed the cost of bringing the Vega from drawing board to production reality at a staggering $200 million compared to about $5 million for the AMC Gremlin.
Motor Trend awarded the Vega 1971 Car of the Year. By 1974, the Vega was among the top 10 best-selling American cars.
The Cosworth Twin-Cam, a limited production, performance model was introduced in March 1975 featuring a 1,994 cc (121.7 cu in) all-aluminum inline-4, the cylinder head design assisted by Cosworth Engineering in England.
By 1975, a poor public perception of the Vega had developed from early model issues involving its 140 engine and fender corrosion. The Vega-derived Chevrolet Monza and smaller Chevrolet Chevette offered alternatives. Despite efforts to improve the car's image, Chevrolet cancelled the Vega and its aluminum engine at the end of the 1977 model run.
Chevrolet and Pontiac divisions were working separately on small cars in the early and mid 1960s. Ed Cole, GM's executive vice-president of operating staffs was working on his own small-car project using the corporate engineering and design staffs. He presented the program to GM's president in 1967. When the corporation started seriously talking about a mini-car, Cole's version was chosen with the proposals from Chevy and Pontiac rejected, and Cole's new mini-car was given to Chevrolet to sell. Not only did corporate management make the decision to enter the mini-car market, it also decided to develop the car itself. It was a corporate car, not a divisional one. In 1968 GM chairman James Roche announced that General Motors would produce the new mini-car in the U.S. in two years. Ed Cole was the chief engineer and Bill Mitchell, the vice-president of the design staff, was the chief stylist.
Cole wanted a world-beater, and he wanted it in showrooms in 24 months. This was a brutally short time to design and engineer a new car, especially one that borrowed almost nothing from any other. He formed a GM corporate design team exclusively for the Vega headed by James G. Musser, Jr. who had played major roles in helping develop the Chevy II, the Camaro, the 350 and 400 cu in V8s, and the Turbo Hydramatic transmission. Musser said, "This was the first vehicle where one person was in charge and, under him — that is me — a group of guys did the entire vehicle." The Vega, like the Corvair, has long been referred to as Ed Cole's baby. It was as GM president that Cole oversaw the genesis of the Chevrolet Vega. Early spy reports called the Vega "Gemini" and "GMini," although Motor Trend and other publications used the correct internal designation, XP-887. Chevrolet "teaser" ads began in May 1970, not announcing its name, stating -You'll see.
The Chevy Vega was conceived in 1968 utilizing the newly-developed all-aluminum die-cast engine block technology. The first sand cast aluminum blocks were actually produced a full two years prior to the corporate decision to build the Vega. A relatively large displacement engine with good low speed torque was chosen. Economy would be achieved through the use of low numerical gear ratios, which would keep engine rpm low. The Vega engine itself went through 6,000,000 driving miles of testing. The earliest version of the engine was tested in a Fiat 124 sedan. This car was used for development of the aluminum block, while several 1968 Opel sedans were used for drive train development.
Chevrolet instituted a totally new management program to design the Vega: the car line management technique. In placing a single individual, the chief vehicle engineer in charge of the entire program and having the entire car – including engine, suspension, and brakes – designed by engineers specifically assigned to the Vega. A total of 50 engineers were assigned to the Vega engineering team broken down into body, power train, and chassis design groups, the product assurance group, and the pleasability group. Fisher Body engineers and draftsmen were also moved in with the Vega personnel. It is generally acknowledged that this organizational arrangement made it possible to put out a totally new car in such a short time. The pleasabilty group would check continuously on the vehicles on the assembly line. As part of another program, computers would keep tabs on quality control of every vehicle built.
- January, 1968 – Ed Cole visited GM Styling to review XP-887 Program. He requested provisions for V8 engine, a full-line of body styles and consideration of a two-passenger Coupe version.

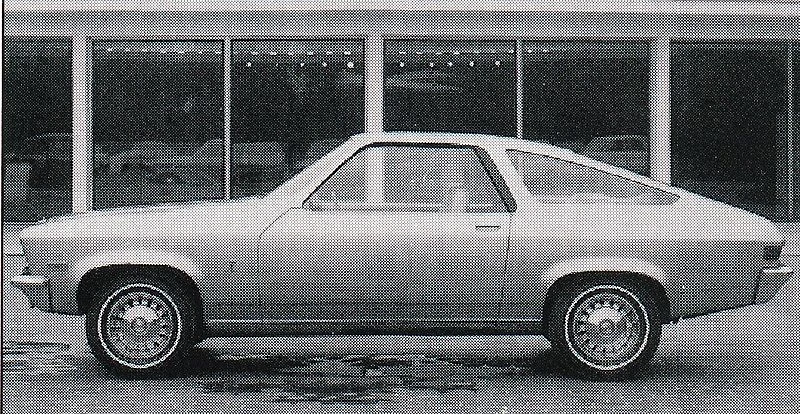

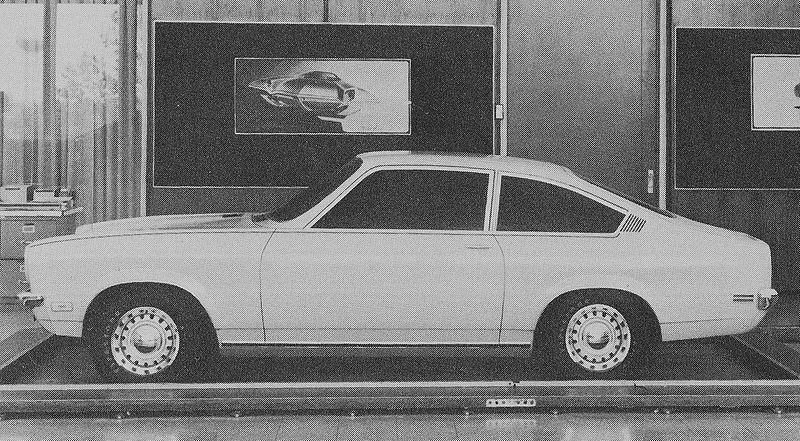

- August, 1968 – XP-887 Dummy clay models complete, Surface scans and digital tapes released to Fisher Body R&D Department for purpose of building prototype bodies for coupe, sedan and station wagon.
- October 1968, there was only one body style – the "11" style notchback sedan, one engine, one transmission – the MB1 Torque-Drive manually-shifted two-speed automatic, no headliner, one base trim level, a bench seat, molded rubber floor covering, no glove box, no air-conditioning option, ventilation only through the upper dash direct from the wiper plenum, and exterior paint on the interior. As the program progressed into development, the market changed, and so did the product:
- December, 1968 – Hatchback, wagon, and panel delivery styles added. floor-level ventilation added. optional performance engine ("L-11" two-barrel) added; predicted production rate was 20%; actually ran at 75%. Bucket seats replaced bench seat as standard equipment. Carpeting and headliners added for hatchback and station wagon. Air Conditioning option added; predicted production was 10%, actually ran at 45%.
- February, 1969 – Opel three- and four-speed transmissions added (three-speed standard, others optional), Powerglide added (now four transmissions), mechanical fuel pump replaced by in-tank electric fuel pump, power steering option added, base "11" style Notchback trim upgraded to match Hatchback and Wagon (carpet and headliner).
- April, 1969 – Gauge-pack cluster option added, HD suspension and wide tire option added, adjustable seat back option added; ran at 45% production, bumpers restyled, lower valance panels added, swing-out quarter window option added; ran at 10% production.
- July, 1969 – Electrically-heated backlite option added; ran at 10% production, "GT" package option added at $325.00; ran at 35% production, bright window-frame and roof drip moldings added to the Hatchback and Wagon. This is essentially how the car launched as a 1971 model.

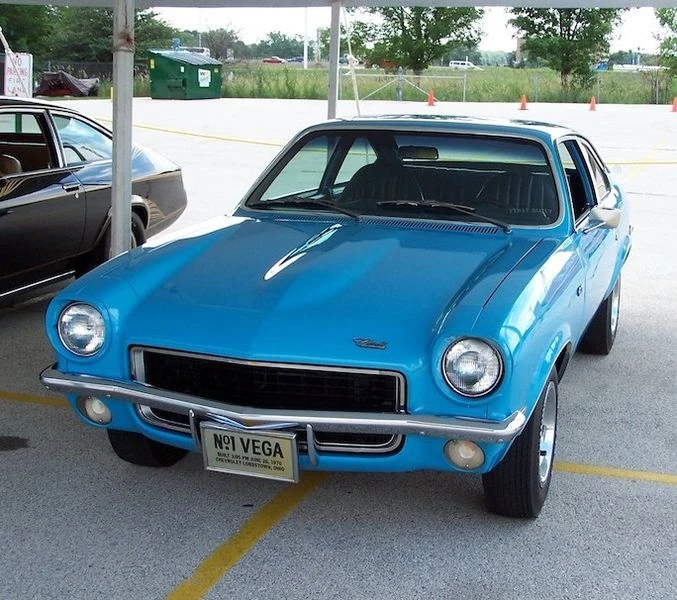

Production began on June 26, 1970. After the National GM strike (9/70-11/70) ended, bright roof drip moldings were added to base "11" notchback; moldings were sent to dealers to update units already in the field in December. The car still had no glove box.
Chevrolet paid a price in its rush to introduce the car with the other 1971 models. Tests which should have been at the proving grounds were preformed by customers necessitating numerous piecemeal "fixes" by dealers. Chevrolet's "bright star", received an enduring black eye despite a continuing development program which eventually alleviated most of these initial shortcomings.
The Hatchback Coupe, first and foremost, is a styled subcompact. With its lower roof line and useful fold-down rear seat, it accounted for nearly half of all Vegas sold.
"Will the real Ferrari 365 GT 2+2 please stand up? Vega coupe has roof, window, and deck forms extremely-and not accidentally-similar to those of the Italian luxury car." - Road & Track, September 1970.

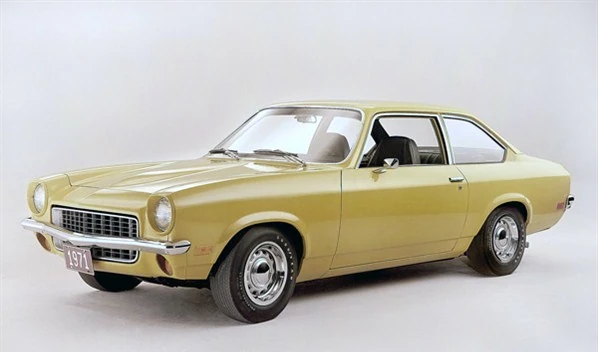

The Sedan, later named Notchback is the only Vega model with an enclosed trunk, has more rear seat headroom than the hatchback, and offered the lowest base price.
"The plain Vega sedan is as good-looking a car as you'll find in its class...with the Vega they've turned out one of the finest-looking compact sedans in the world." - Road & Track, '72 road test annual

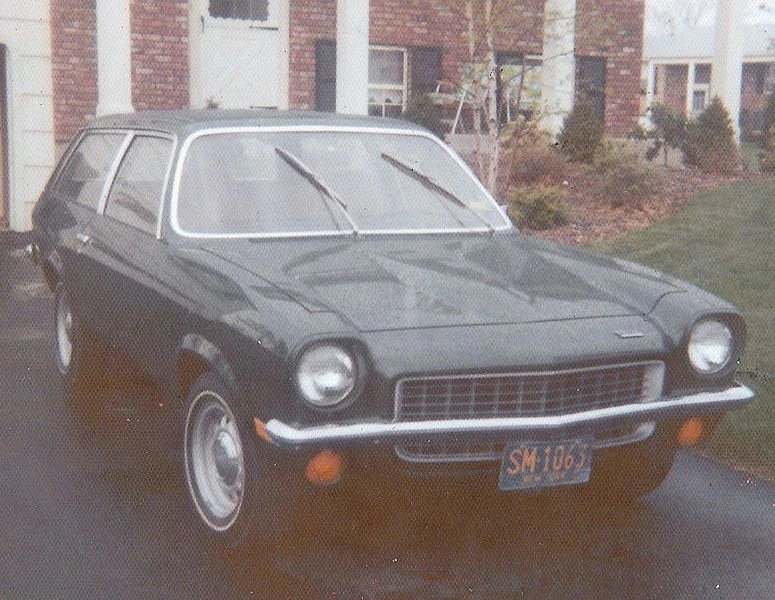

The Kammback wagon has 50.2 cubic feet of cargo space (with the rear seat down), a lower cargo liftover height and a swing-up liftgate; retains the Coupe's handling capabilities.
"...Vega wagon has extremely simple but pleasant overall shape." - Road & Track, September 1970

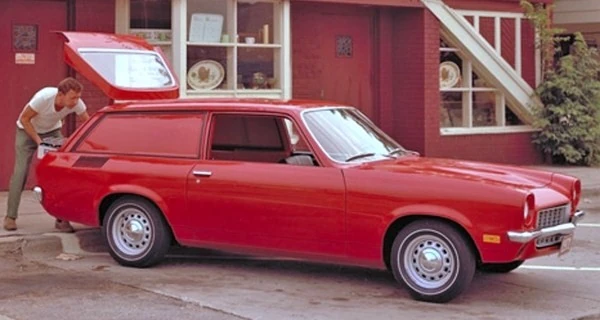

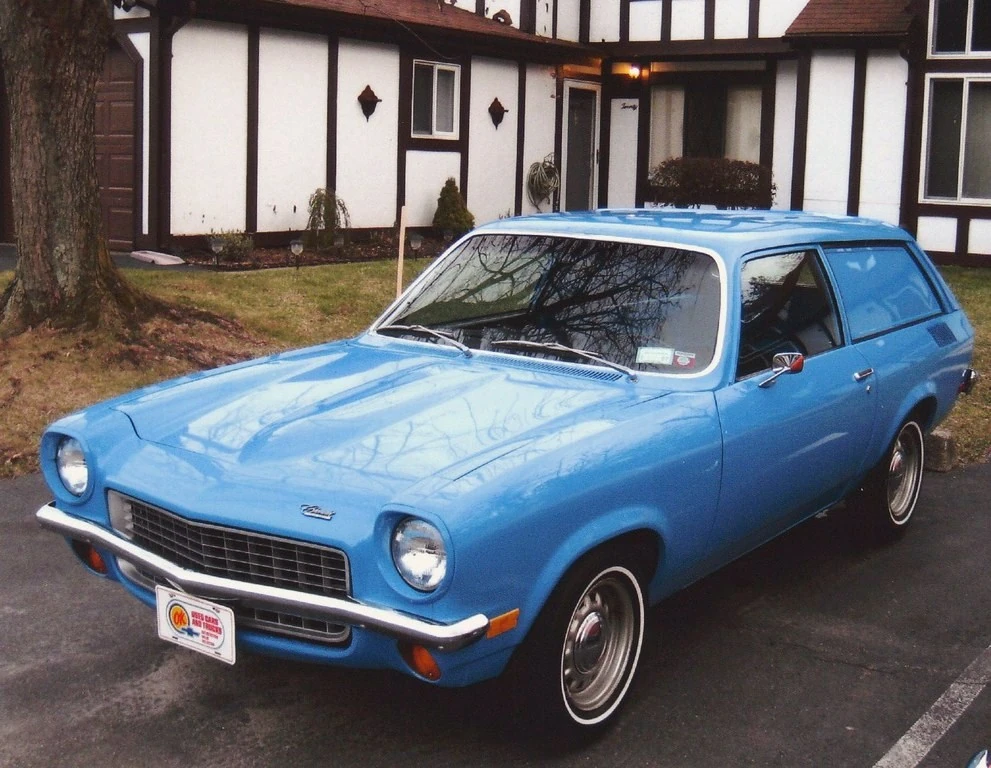

The Panel Express, a one-passenger panel delivery is based on the wagon with steel panels in place of the wagon's fixed rear side glass. Classified as a truck, the panel has a Chevy Van driver's seat, a deleted rear seat and an enclosed storage area under the load floor. An auxiliary front passenger seat was optional.
In mid-1971 an optional GT package for Hatchback and Kammback models was introduced which included the L-11 two-barrel 140 engine, the F-41 handling suspension option (H.D.springs and shock absorbers, front and rear stabilizer bars, 6-inch-wide wheels and 70-series raised white-letter tires), GT fender emblems, black-finished grill and lower body sills, clear parking lamp lenses, chrome belt and lower moldings, full instrumentation, four-spoke sport steering wheel, adjustable driver's seat back, passenger-assist handle and a wood-grain dash bezel. Satin-finished GT wheels with trim rings and chrome bow-tie center caps replaced the argent wheels and stainless hub caps, and a hood/deck sport stripe in black or white was optional.
Dan Gurney, the first driver to win races at Formula One (1962), NASCAR (1963), and Indy Car (1967) combined, tested a Vega GT on a NASCAR oval. Gurney said: "The engineering seems to shine through. I like it; I like it very much."
Yenko Chevrolet marketed the Yenko Stinger II through 1973 — based on the GT Hatchback, its 140 cu in L-11 engine featured high-compression pistons and a turbocharger producing 155 hp. Included were front and rear spoilers and side striping with "Yenko Stinger II" identification.
Design and Engineering

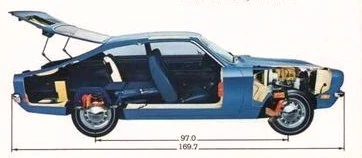

All Vega models have a 97.0-inch wheelbase and a 65.4-inch width. The 1971–1972 models have a 169.7-inch overall length or just over 14 feet. 1973 models are 3 inches longer due to the front 5 mph bumper. 1974–1977 models have front and rear 5 mph bumpers and are 5.7 inches longer than the 1971–1972 models. In a size comparison with a 1970 Nova, the Vega has a 14-inch shorter wheelbase, 7 inches narrower width, 2 inches lower height, and (1971–1972 models) have 20 inches less overall length.
The Vega's front-engine, rear-wheel drive layout is the traditional one where the engine is located at the front of the vehicle and driven wheels are located at the rear. The aluminum block inline-four engine was a joint effort from General Motors, Reynolds Metals, and Sealed Power Corp. The engine and its die-cast block technology was developed at GM engineering staff long before the program was handed-off to Chevrolet to finalize and bring to production. Ed Cole, who had been very personally involved with the design of the 1955 Chevrolet V8 as chief engineer at Chevrolet, was equally involved with the Vega engine as GM president, and was a frequent visitor on Saturdays to the engineering staff engine drafting room, reviewing the design and giving direction for changes. Chevrolet engineers and manufacturing personnel weren't pleased, especially since they knew Ed Cole wanted the job done quickly. As the engine development progressed at Chevrolet, it became known (in closed offices) as "The world's tallest, smallest engine" due to the tall cylinder head. Plagued by vibrations, noisy operation and prone to overheating, the engine did not live up to the Vega's potential. By 1974, the overheating and vibrations were a thing of the past and the noise had been reduced to an acceptable level.
GM's German subsidiary Opel was commissioned to tool up a new three-speed derivative of their production four-speed manual transmission. The GM finance department insisted that the base transmission be a low-cost three-speed, with the traditional profit-generating four-speed as an extra-cost option. Opel tooled up a new three-speed unit exclusively for the Vega, unusual only because it had shift linkages on both sides. Its final cost was higher than the optional four-speed due to the tooling investment and production volume. Both transmissions were shipped from Germany, 100 transmissions to a crate, and arrived in shipments of thousands of transmissions at a time. Initially Powerglide automatic and Torque-Drive semi-automatic transmissions were optional. The two-speed Torque drive required a manual upshift but had no clutch pedal. The U.S.-built Saginaw three- and four-speed manual and an air-cooled version of the Turbo-Hydramatic automatic later replaced the Opel-built manual transmissions, the Torque-Drive, and Powerglide. Axle ratios ran from a low 2.53 for economy, to a 2.92 for better acceleration with a slight fall-off in economy to a 3.36 performance ratio. Positraction was also available.
Its suspension and live rear axle design, near ideal weight distribution, low center of gravity and neutral steering give the Vega world-class handling characteristics. Lateral acceleration capacity is .90g for the standard suspension, and .93g for the RPO F-41 suspension. Weight distribution is quoted at 53.2% front and 46.%8 rear. The overall chassis suspension was to be tuned to a new A78 × 13 tire that was being developed concurrently with the vehicle. The front suspension is classic General Motors short and long-arm. The lower control arm bushings were actually larger than those of the 1970 Camaro. The four-link rear suspension copied that of the 1970 Chevelle, and coil springs are used throughout. This was a significant departure from the leaf spring suspension used in the Camaro and Chevy II Nova. The engineers in charge of chassis development were seeking a package that would provide full-size domestic car ride qualities with handling equal to that of European cars. A torque-arm rear suspension was later adopted, replacing the four-link design, thus eliminating the panic-braking induced rear wheel-hop.
The steering box and linkage are located ahead of the front wheel centerline. The shaft is a cushioned two-piece unit. The overall ratio is 22.5:1 and the curb to curb turning circle is 33 feet. The Vega's front disc and rear drum brake system copied an excellent Opel design including 10-inch diameter single-piston solid rotors designed especially for the Vega and 9-inch diameter drum rear brakes, utilizing the leading-trailing design. The system is balanced to give braking distribution of 70/30 front and rear with no proportioning valve, and exhibiting nearly linear pedal effort.
All four Vega models share the same hood, fenders, floor pan, door lower panels, rocker panels, engine compartment, and front end. The roof panel is a double layer, with a drilled inner panel to cut noise. The hood is hinged at the front and features an inside locking mechanism. Due to its "Modular Construction Design", a Vega sedan with 578 body parts had 418 fewer parts than its full-size Chevrolet counterpart. Modular Construction Design reduced the number of joints and sealing operations resulting in stronger, tighter bodies, effectively contributed to vehicle quality and made possible a very high rate of production. The Vega's body surface was the first accomplished completely through use of computers. Body surface information recorded on tape derived from the clay styling model, allowed computers to improve the body surface mathematically.
The Vega's styling was judged conservative, clean-lined and timeless. The GM styling studio's main influence was the 1967–1969 Fiat 124 Sport Coupe AC. The Chevrolet Camaro/Corvette studio under Henry "Hank" Haga was doing the 1970 Camaro at the time. With direction from Bill Mitchell, Haga's group took a clay model and redid the engineering version of the Vega, grafting a miniaturized Camaro front end and egg-crate grille and capped the rear of the sedan and hatchback models with recognizable Chevrolet tail lamps. The coupe has hints of everything from Camaro to Ferrari in its styling. Three years later the front end would be redesigned to accommodate the revised 1974 pendulum-test, 5-mph bumper standard. The sloped front-end was generally well-received although many Vega enthusiasts preferred the older front end.
The seats are foam-padded and covered in vinyl with built-in head restraints (except delievery). Interior door panels are single-piece molded units. Flooring is rubber on sedan and panel delivery with carpeting and additional sound insulation added on the other two models. An optional Decor package for the sedan included the carpeting, the additional insulation, and a sliding adjustment for the passenger seat. A custom interior option for all models (except delivery) added upgraded upholstery, cargo area load floor carpeting in the hatchback and wagon, a two-postion reclining driver's seat, passenger grap handle and woodgrain accents.
Many service operations were intentionally designed so that they were able to be performed by Vega owners. To further that end, a "Do-It-Yourself" service manual was included with each new Vega.
Model year changes
1972 models were essentially carried over from 1971 with a few refinements and additions. Vibration and noise levels were reduced by a revised exhaust system and better driveline damping and the rear shock absorbers were revised. A three-speed Turbo-hydramatic automatic transmission option was added, joining the two-speed Powerglide. The Torque-Drive transmission was discontinued. A custom cloth interior option was new and a glove box was added.
The 1973 Vega had over 300 changes, including new exterior and interior colors and new standard interior trim. The front and rear script nameplates — "Chevrolet Vega 2300" were changed to block letters — "VEGA by Chevrolet". The front bumper, on stronger brackets was extended 3 inches with a steel body-color filler panel — to meet the 1973 5-mph front bumper standards. The L-11 engine featured a new Holley staged two-barrel carburetor. Both engines had revised emmission controls. US-built Saginaw manual transmissions and a new shift linkage replaced the Opel-built units. The Powerglide was discontinued, leaving the Turbo-hydramatic the sole automatic transmission offering. New options included BR70-13 white stripe steel belted radial tires, full wheel covers and body side molding with black rubber insert.
Two new models were introduced mid-year — the Estate Kammback Wagon with wood grain vinyl side and rear trim and the LX Notchback including a vinyl roof; both included the custom interior.

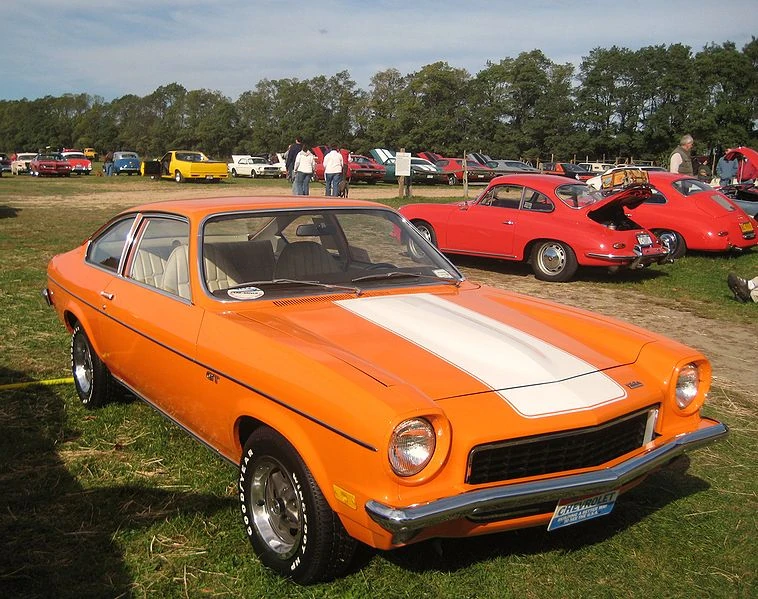

On May 17, 1973 the one-millionth Vega was produced at the Lordstown assembly plant — a bright orange GT Hatchback with white sport stripes, power steering, a neutral custom vinyl interior with exclusive vinyl door panels, accent-color orange carpeting and millionth Vega door handle accents. A limited edition "Millionth Vega" was introduced replicating the milestone car. 6500 were built May to July.

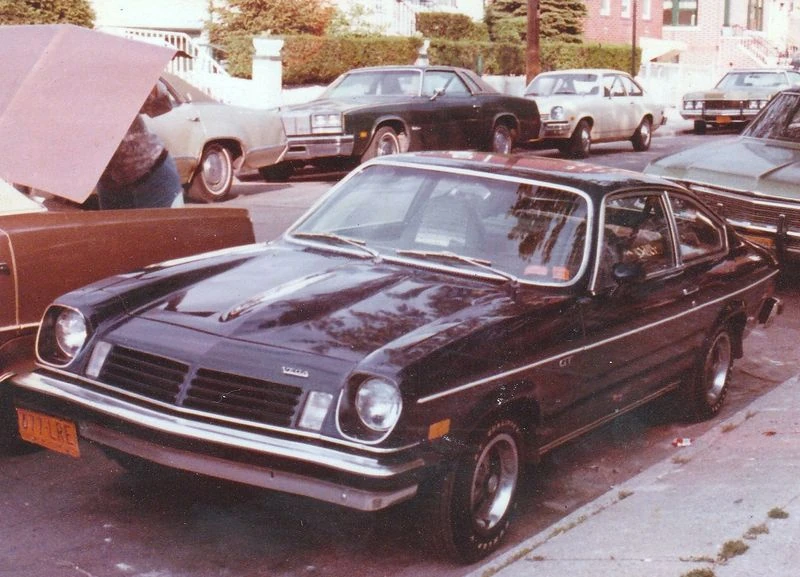

The 1974 model year brought the only major exterior design changes, due to the revised front and rear 5-mph bumper standards. The redesigned front end featured a slanted header panel and recessed headlamp bezels with a louvered steel grille replacing the egg-crate plastic grille. Front and rear aluminum bumpers with inner steel spring (resembling the 1974 Camaro) replaced the chrome bumpers, and front and rear license plate mountings were relocated. Overall length was increased six inches compared to 1971-72 models. A revised rear panel on Notchback and Hatchback models had larger single unit taillights and ventilation grills were eliminated on trunk and hatch lids. A 16 gallon fuel tank replaced the 11 gallon tank. The GT sport stripes option was changed — side stripping replaced the painted hood/deck stripes. The custom interior's wood-trimmed molded door panels were replaced with vinyl door panels matching the seat trim. In January plastic front fender liners were added after thousands of sets of fenders were replaced under warranty on 1971-1974 models. In February the "Spirit of America" limited edition hatchback was introduced featuring a white exterior, white vinyl roof, blue and red striping on body-sides, hood and rear-end panel, emblems on front fenders and rear panel, white "GT" wheels, A70-13 raised white-letter tires, a white custom vinyl interior and red accent color carpeting. 7500 were built through May. Sales peaked for the 1974 model year with 460,374 produced.
The 1975 Vega had 264 changes including H.E.I. (High-energy) electronic ignition and catalytic converter. New options included power brakes, tilt steering wheel, BR78-13B GM-spec steel belted wsw radial tires, and a special custom cloth interior option for the Hatchback and Kammback. In March the Cosworth Vega was introduced featuring an all-aluminum twin-cam inline-4 engine and the first use of electronic fuel injection on a Chevrolet passenger car. All 2,061 1975 models were black with gold accent striping, gold-colored aluminum wheels and black custom vinyl, black custom cloth, or white custom vinyl interiors with a gold "engine turned" dash bezel and gold-plated plaque with Cosworth ID and build number. The Panel Express was discontinued at the end of the model year. Never a big seller, Panel Express sales peaked the Vega's first year at 7,800 units. After leveling off to an average of 4,000 per year, only 1,525 1975 models were sold. Total sales fell to 206,239.
1976 models had 300 changes. A facelift included a revised header panel with Chevy bowtie emblem, a wider grill, revised headlamp housings/bezels — all now made of corrosion resistant material, and new tri-color taillights for the Notchback and Hatchback. The 2.3 liter engine, named Dura-built 140, received improved cooling and durability refinements. The chassis received the Monza's upgraded components including the box-section front cross-member, larger rear brakes, and torque-arm rear suspension which replaced the four-link design. The body received extensive anti-rust improvements including galvanized fenders and rocker panels. New models introduced were the GT Estate Wagon, the Cabriolet Notchback with a half vinyl roof with opera windows, similar to the Monza Towne Coupe, and a limited edition Nomad Wagon featuring restyled side windows. New options included a Borg Warner five-speed manual overdrive transmission and a houndstooth type seat trim named "sport cloth" for an additional charge of $18. In January, a "Sky-Roof" with tinted reflectorized sliding glass and 8-track tape player options were added. The Cosworth was offered in eight additional exterior and two additional interior colors mid-year, but was canceled in July after only 1,446 1976 models.
1977 models were carried over from 1976 with a few revisions. The Notchback was renamed Coupe. The Dura-built 140 engine received a pulse-air manifold injection system to meet the more strict 1977 Federal emission standards. A similar system secured the Cosworth engine EPA certificate in 1975. The one-barrel version of the engine was dropped, as was the three-speed manual transmission. Interiors received a color-keyed steering column, steering wheel, instrument cluster face, and parking brake cover. A color-keyed full console was a new option. GTs were now offered in two appearence variations - the new one featured a blacked-out theme to exterior moldings (lower moldings deleted), black sport mirrors and wheels, bold Vega GT lettered side striping with and rear Vega GT decal.
140 CID OHC

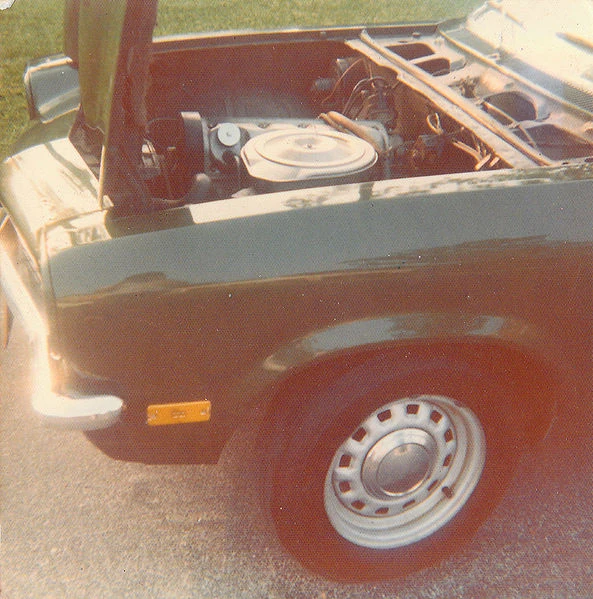

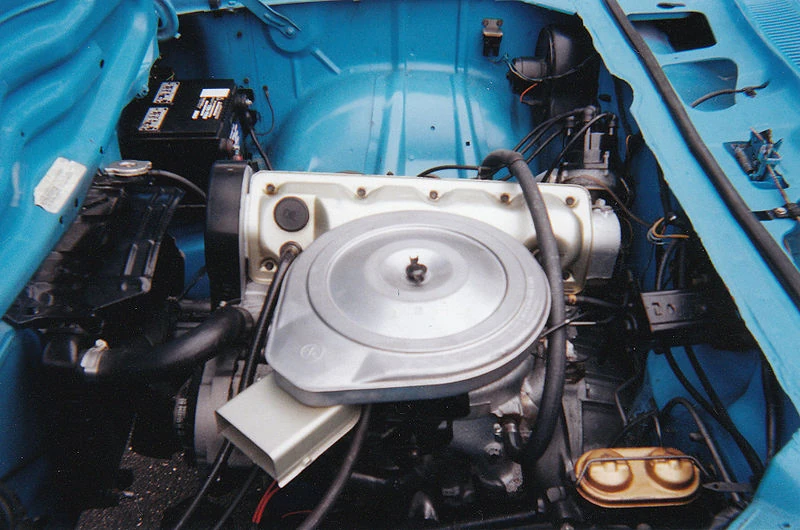

The Vega 140 CID engine is a 2,287 cc (139.6 cu in) inline-four featuring a die-cast aluminum cylinder block and a cast-iron cylinder head with a single overhead camshaft (SOHC). The cylinder block is an open deck design with siamesed free-standing cylinder bores. Outer case walls form the water jacket and are sealed off by the head and the head gasket. The block has cast iron main caps and a cast iron crankshaft. The cast iron cylinder head was chosen for low cost and structural integrity. The overhead valvetrain is a direct acting design of extreme simplicity. Only three components activate the valve rather than the usual seven of a typical push rod system. The camshaft is supported by five conventional pressed-in bearing and is driven from the crankshaft by an externally mounted continuous cogged belt and sprocket system. Six v-grooves on the outside of the belt drive the water pump and fan.
The large bore and long stroke design provide good torque and lower rpm operation for reduced wear. Compression ratio for the standard and optional engine is 8.0:1, as the engine was designed to operate on low-lead and no-lead fuels. A single-barrel carburetor version produces 90 hp. The two-barrel version (RPO L11) produces 110 hp. From 1972 on, ratings were listed as SAE net. The relatively large (for an inline-4) engine is naturally prone to vibration and is subdued by large rubber engine mounts. The 1972 Rochester DualJet two-barrel carburetor required an air pump for emission certification and was replaced in 1973 with a Holley-built 5210C staged two-barrel carb. Emission control revisions made in 1973 reduced power output on the optional engine by 5 bhp, although the engine's cruising noise levels were reduced. H.E.I. ignition was introduced on 1975 engines. Non-air conditioned cars have a small 12-inch by 12-inch radiator core. The reason for the relatively small radiator was the aluminum engine block and its superior heat conductivity as compared to iron.
Sports Car Graphic magazine said in September, 1970: "The new die-cast aluminum Vega 2300 (engine) is a masterpiece of simplicity. There are many innovations made to reduce the number of pieces and improve repairability. One belt drives cam and water pump. The movable water pump is also the belt tensioner. The oil pump is on the crankshaft and is also the front engine cover."
Collectable Automobile magazine said 30 years later in April, 2000: "The Vega engine was the most extraordinary part of the car."

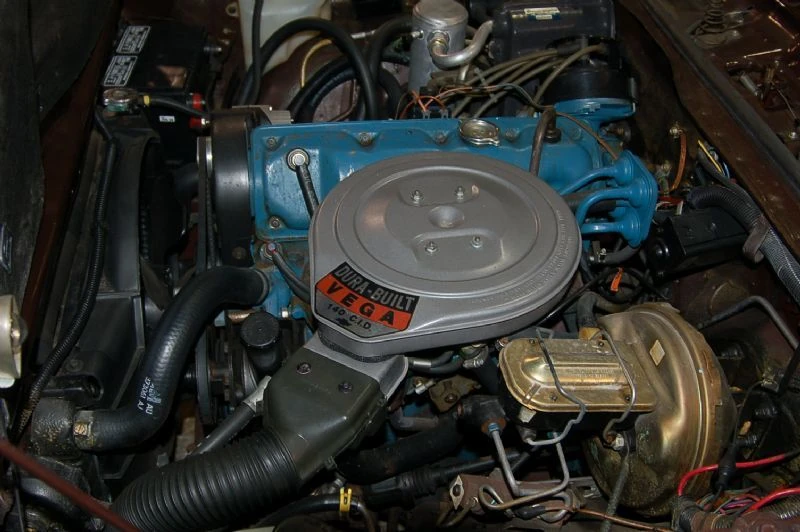

Dura-built 140The 140 cu in engine was named Dura-Built 140 in 1976. It features improved coolant pathways for the aluminum-block, a redesigned cylinder head incorporating quieter hydraulic valve lifters, longer life valve stem seals, and a redesigned water pump, head gasket, and thermostat. Warranty on the engine was 5 years/60,000-miles.
"August 1, 1975. 8 a.m. Outside the southern edge of Las Vegas, Nevada. Three medium orange Vegas start their engines. They won't be turning them off much during the next 58 days except for rest and food stops, refueling and maintenance. They have a job to do."

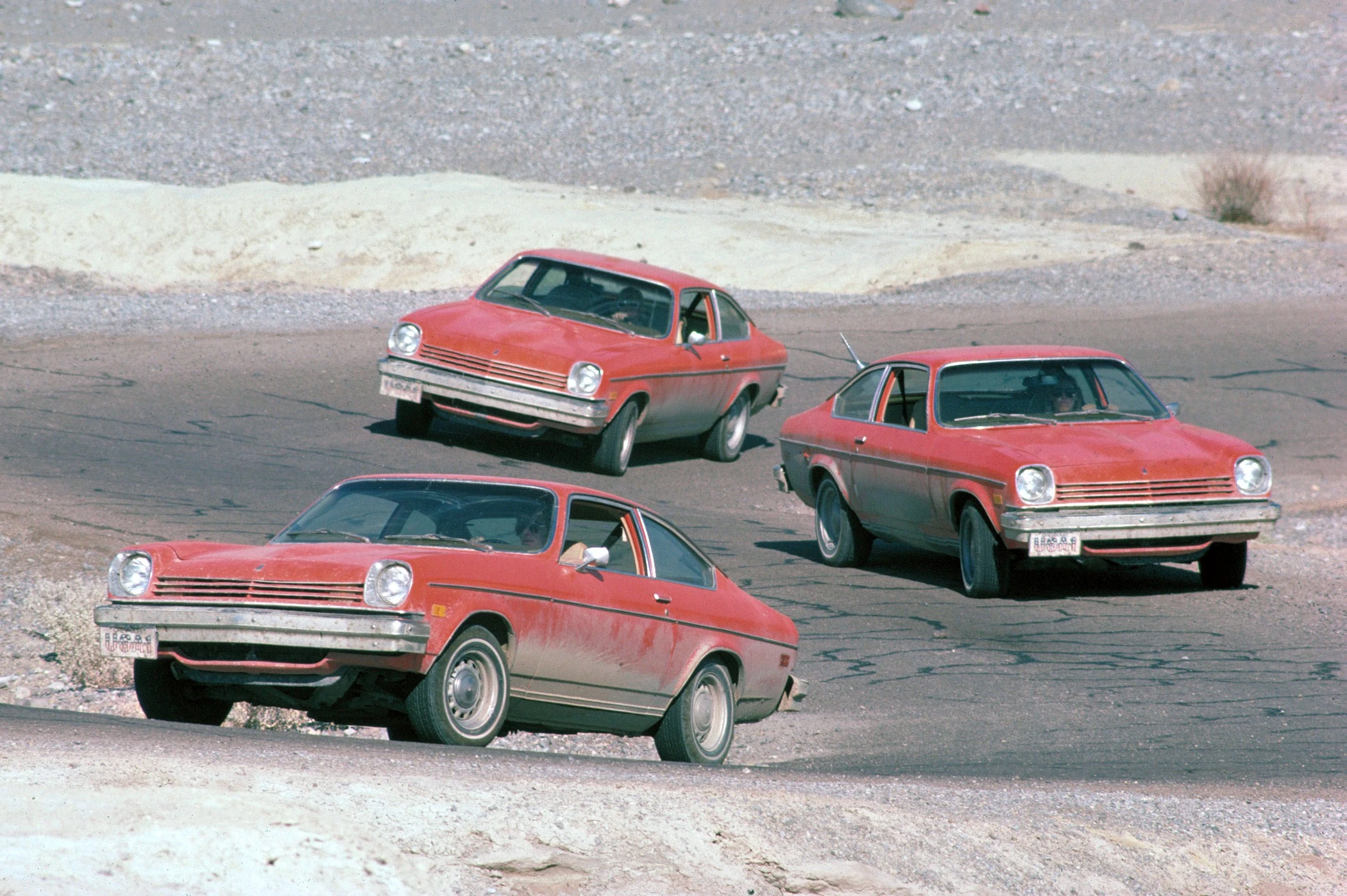

Chevrolet conducted an advertised 60,000 miles in 60 days Durability Run of the 1976 Vega and its Dura-built 140 engine. Three new Vega hatchback coupes equipped with manual transmissions and air conditioning were driven non-stop for 60,000 miles in 60 days through the deserts of California and Nevada (Death Valley) using three pre-production models of the subcompact and nine non-professional drivers. All three 1976 Vegas completed a total of 180,000 miles with only one "reliability" incident — a broken timing belt — was recorded. This fact prompted Vega project engineer Bernie Ernest to say, "The Vega has reliability in excess of 60,000 miles, and therefore the corporation feels very comfortable with the warranty." Chevrolet chose the 349-mile Southwestern desert route in order to show the severely criticized engine and cooling system had been improved in the 1976 model.
During the 60-day test which was certified and supervised by the United States Auto Club, the three cars were subjected to ambient temperatures never lower than 99 degrees and often reaching as high as 122 degrees. The nine drivers were instructed to treat the cars as they would their own and use the air conditioning as desired. Yet, in more than 180,000 miles of total driving, the cars used only 24 ounces of coolant, an amount attributed to normal evaporation under severe desert conditions. Furthermore, fuel economy for the three test Vegas averaged 28.9 mpg over the duration of the run, while oil was used at the rate of only one quart every 3400 miles. Translated into actual driving expenses, the three Vegas averaged a per-mile cost of 2.17 cents. One of the cars went on display in the 60,000 miles in 60 days exhibit at the 1976 New York International Auto Show. The 1977 Dura-built 140 engine added a pulse-air system to meet the more-strict 1977 U.S. emission standards. The engine paint color went from orange used in '76 to blue as were all 1977 Chevy engines.
122 CID DOHC
The Cosworth Vega 122 CID engine is a 1,994 cc (121.7 cu in) inline-four featuring a die cast aluminum alloy cylinder and case assembly and a Type 356 aluminum alloy, 16-valve cylinder head with double overhead camshafts (DOHC) designed in conjunction with Cosworth Engineering of England.
The camshafts are held in a removable cam-carrier which also serves as a guide for the valve lifters. Each camshaft is supported by five bearings and is turned by individual cam gears on the front end. The two overhead camshafts are driven, along with the water pump and fan, by a fiberglass cord reinforced neoprene rubber belt, much like the Vega 140 cubic inch engine. Below the cam carrier is a 16-valve cylinder head constructed of an aluminum alloy using sintered iron valve seats. Sturdy forged aluminum pistons and heat-treated forged steel crankshaft and connecting rods reveal racing ancestry; assure high performance durability. The engine features a stainless steel exhaust header and electronic fuel injection (EFI) – a Bendix system with pulse-time manifold injection, four injector valves, an electronic control unit (ECU), five independent sensors and two fuel pumps.
Each engine was hand-built and includes a cam cover sticker with the engine builder's signature. The Cosworth Vega engine is some 60 pounds lighter than the SOHC Vega engine. The engine develops its maximum power at 5,600 rpm and is redlined at 6,500 rpm where the SOHC Vega engine peaks at 4,400 rpm and all is done at 5,000 rpm. Final rating is 110 bhp. 5,000 engines were built, but only 3,508 were used; GM disassembled about 500; the remaining engines were scrapped for a writeoff of $10K per engine.
Aluminum engine block
GM Research Labs had been working on a sleeveless aluminum block since the late '50s. The incentive was cost. Engineering out the four-cylinder's block liners would save $8 — a substantial amount of money at the time. Reynolds Metal Co. developed an alloy called A-390, composed of 77 percent aluminum, 17 percent silicon, 4 percent copper, 1 percent iron, and traces of phosphorus, zinc, manganese, and titanium. The A-390 alloy was suitable for faster production diecasting which made the Vega block less expensive to manufacture than other aluminum engines. Sealed Power Corp. developed special chrome-plated piston rings for the engine that were blunted to prevent scuffing. Basic work had been done under Eudell Jackobson of GM engineering, not at Chevrolet. Subsequently, Chevrolet was given job of putting the ohc sleeveless, aluminum block into production.
The Vega engine block was cast in Massena, New York - at the same factory that had produced the Corvair engine. Molten aluminum was transported from Reynolds and Alcoa reduction plants to the foundry, inside thermos tank trucks. The block was cast using the Accurad process. The casting process provided a uniform distribution of fine primary silicon particles approximately 0.001 inches in size. Pure silicon provides a hard scuff and wear resistant surface, having a rating of 7 on the mohs scale of hardness, the same as quartz, as compared to diamond which is 10. The blocks were aged 8 hours at 450 °F to achieve dimensional stability. Before being shipped to Tonawanda, the blocks were inpregnated with sodium silicate, where they were machined through the outer skin. From Massena, the cast engine blocks were shipped as raw castings to Chevy's engine plant in Tonawanda, New York. Here they underwent the messy etch and machining operations. The cylinder bores were rough and finish-honed conventionally to a 7-microinch finish then etched by a new (then) electro-chemical process. The etching removed approximately 0.00015-inch of aluminum leaving the pure silicon particles prominent to form the bore surface.
The technical breakthroughs of the block lay in the die-casting method used to produce it, and in the silicon alloying which provided a compatible bore surface without liners. With a machined weight of 36 pounds, the block weighed 51 pounds less than the cast-iron block in the Chevy II 153 CID inline-4. Plating the piston skirts was necessary to put a hard iron skirt surface opposite the silicon of the block to prevent scuffing. The plating was a four layer electo-plating process. The first plate was a flash of zinc followed by a very thin flash of copper. The third and primary coating was hard iron, 0.0007-inch thick. The final layer was a flash of tin. The zinc and copper were necessary to adhere the iron while the tin prevented corrosion before assembly of the piston into the engine. Piston plating was done on a 46 operation automatic line. From Tonawanda, the engines went to the Chevrolet assembly plant in Lordstown, Ohio.
Eudell Jackobson of GM engineering pointed out one of the early problems with unexplained scuffing and discovered excessive pressure on the bore hones was causing the silicon to crack. He said:"...We were trying to put a product into production and learning the technology simultaneously. And the pressure becomes very, very great when that happens. The hone-pressure problem was solved before engines actually went out the door, affecting only pre-production engines.
Engine output summary
|Year||Standard Engine||Optional L-11 Engine & GT (Z29)||Cosworth Twin-Cam (ZO9)|
|1971|| 90 hp @ 4,400 rpm
136 lbft of torque @ 2,400 rpm
| 110 hp @ 4,800 rpm
138 lbft of torque @ 3,200 rpm
|1972|| 80 hp @ 4,400 rpm
121 lbft of torque @ 2,400 rpm
| 90 hp @ 4,800 rpm
121 lbft of torque @ 2,800 rpm
|1973|| 72 hp @ 4,400 rpm
100 lbft of torque @ 2,000 rpm
| 85 hp @ 4,800 rpm
115 lbft of torque @ 2,400 rpm
|1974|| 75 hp @ 4,400 rpm
115 lbft of torque @ 2,400 rpm
| 85 hp @ 4,400 rpm
122 lbft of torque @ 2,400 rpm
|1975|| 78 hp @ 4,200 rpm
120 lbft of torque @ 2,000 rpm
| 87 hp @ 4,400 rpm
122 lbft of torque @ 2,800 rpm
| 110 hp @ 5,600 rpm
107 lbft of torque @ 4,800 rpm
|1976|| 70 hp @ 4,200 rpm
120 lbft of torque @ 2,000 rpm
| 84 hp @ 4,400 rpm
122 lbft of torque @ 2,800 rpm
| 110 hp @ 5,600 rpm
107 lbft of torque @ 4,800 rpm
|1977|| 84 hp @ 4,400 rpm
122 lbft of torque @ 2,800 rpm
notes: 1972–1977 hp/torque ratings are SAE Net. L-11 engine standard on 1977 models
Although the optional L-11 engine became a mainstream part of the Vega development program in December 1968, the Chevrolet engine group had an intense dislike for the tall iron cylinder head with its unusual tappet arrangement and side-flow "Heron" combustion chamber design that had been thrust on them from GM engineering staff, and set out to design their own.
The design evolved rapidly as a "crossflow" aluminum cylinder head with a single centrally-mounted overhead camshaft (OHC) and roller rocker arms operating intake valves on one side and exhaust valves on the other, remarkably similar to the Ferrari V12 cylinder head design of that period; it was almost 4" lower than the Vega production head, was a lot lighter, had true "hemi" chambers with big valves, and made excellent power. Numerous prototypes were built, and manufacturing tooling was started in anticipation of approval for production. The real story never came out, but some combination of corporate politics ("You don’t need another cylinder head – mine will work just fine") and additional program investment killed the program. Had it gone to production, it would not have had the differential expansion head gasket problems that plagued the iron-head engine, and would have provided significantly higher performance than the optional L-11 engine.
In November 1970, GM paid $50 million for initial licenses to produce the Wankel rotary engine, and GM President Ed Cole projected its release in three years, initially targeted for an October 1973 introduction as a 1974 Vega option. The General Motors Rotary Combustion Engine (GMRCE) had two rotors displacing 206 cubic inches, twin distributors and coils, and an aluminum housing. RC2-206 Wankels were installed in 1973 Vegas for cold weather testing in Canada.
Motor Trend, in a 1973 article "The '75 Vega Rotary" said: "GM saw the rotary engine's future as probably much greater than they do today...mileage will be in the 16-18 mpg range. Compared to the normal piston (engine) Vega's 20 to 26 mpg, the whole rotary deal begins to look just a little less attractive, with what the price of gasoline skyrocketing, but that's another matter." Unwilling to face fuel efficiency criticism that Mazda withstood, GM felt it could meet 1975 emissions standards with the engine tuned to provide better mileage. Other refinements improved mileage to 20 mpg, but with the fuel breakthrough came related side-effect problems —apex seal failures, as well as a rotor tip-seal problem.
By December 1973, it was clear the Wankel, now planned for the Monza 2+2, would not be ready for either production or emissions certification in time for the start of the 1975 model year, and after paying another $10 million against its rotary licence fees, the company announced the first postponement. Motor Trend in April 1974 predicted the final outcome – on September 24, 1974, Ed Cole postponed the Wankel engine ostensibly due to emissions difficulties. He retired the same month. GM admitted fuel economy for the rotary was sub-standard and postponed production in favor of further development. Pete Estes succeeded Ed Cole as GM President and never showed any special interest in the Wankel or in the perpetuation of Cole's ideas. Estes had previously decided to let the Corvair, another Cole project, expire well before the celebrated attacks of Ralph Nader.
The 1973 Chevrolet XP-898 concept car is a front engine, rear wheel drive design based on the Chevrolet Vega using many of its components including the aluminum-block 140 cubic inch inline-four engine. The vehicle had a 90 inch wheelbase with an overall length of 166 inches. This two-seater sports coupe offered a unique look at alternative engineering approaches to future techniques in design and manufacturing.
The vehicle was built with a frameless fiberglass foam sandwich body and chassis. The entire body consisted of four lightweight fiberglass outer body panels, the floor pan, firewall, upper front, and upper rear with a rigid urethane foam filling the designed clearance between the panels. The structure and appearance of the car were designed so that the body could be assembled using four lightweight molded outer skin sections. With the outer skin panels placed in a foaming mold, liquid urethane was injected between the panels where it expanded and bonded the body into a single, rigid sandwich structure. The result was a vehicle body virtually free of squeaks, rattles, and vibrations. Once the urethane hardened (which took about fifteen minutes), the suspension, drive train, hood and doors were bolted to reinforcing plates, which were bonded to the fiberglass panels. A key consideration in the engineering design of the XP-898 was the advantage of improved crash worthiness of the sandwich construction technique. The energy absorption characteristics of the vehicle enabled engineers to simulate crash conditions for the vehicle at speeds up to 50 mph without catastrophic failure to the structure.
Total Vega production was 1,966,157 including 3,508 Cosworth Vegas. At its peak, production was 2,400 units per day. The majority were built in the United States at Lordstown Assembly in Lordstown, Ohio. Vegas were also built at the GM of Canada plant Sainte-Thérèse Assembly in Quebec in 1973-'74.
Collectible Automobile said, "One thing that helped the Vega sell was its timing. The car came out for the 1971 model year. In late 1973, the first big international fuel crunch hit, with small, thrifty, American-made cars suddenly in great demand. The 1973-'74 Oil embargo, perhaps more than any other factor, boosted the Vega's fortunes."
note: 1973 model breakdown N/A
The Vega received awards from Motor Trend, Car and Driver and the American Iron and Steel Institute. Chevrolet's advertising for the Vega included ads promoting awards won by the car.
Motor Trend Classic, in the Fall 2010 issue said, "Chevrolet spun the Vega as a more American, upscale car. And let's face it, the car looked hot. So can you blame us for falling hook, line, and sinker for the Vega and naming it 1971's Car of the Year?"

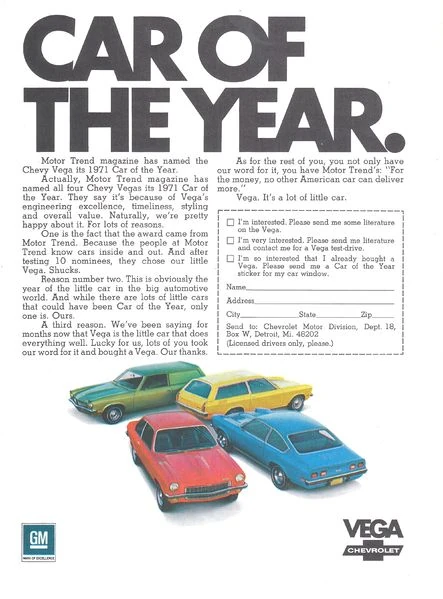

Motor Trend awarded the Vega 1971 "Car of the Year."
MT: "The base Vega is a magnificent automobile without any options at all." "...It is appropriate that the final choice was a car that reflects Detroit's timely response to the people's needs instead of a copy writer's idea of what they should need. So, the Chevrolet Vega 2300 is Motor Trend's 1971 Car of the Year by way of engineering excellence, packaging, styling and timeliness. As such, we are saying that for the money, no other American car can deliver more."
American Iron and Steel Institute awarded the Vega in 1971 for–"Excellence in design in transportation equipment."
Motor Trend awarded the Vega GT 1973 Car of the Year in the Economy Class.
MT: "The best version of the Vega came out on top matched against the best versions of its competition."..."The Vega was judged solid, warm and comfortable, with a good finish." Pleasing the American car buyer is a delicate task. Economy really means economy with an illusion of luxury. This time Chevrolet won the guessing game."

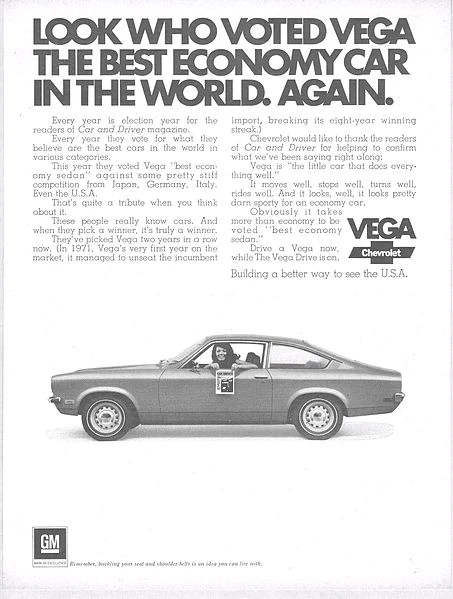

Car and Driver readers voted the Vega "Best Economy Sedan" in 1971, 1972 and 1973 in "C&D's Annual Reader's Choice Poll."
C&D: "In 1971, the Vega's first year on the market, it managed to unseat the incumbent import, breaking its eight year winning streak."
Car and Driver selected the Cosworth Vega one of the "10 Best Collectable Cars" (1976-1986) in its fourth annual "Ten Best" issue in 1986, saying: "We're talking about historical significance here."
Although the Vega sold well from the beginning, the buying public soon started to question the car's quality. It had every right to; It came out prematurely and still had a lot of glitches. Further development and upgrades continued throughout the car's seven year production run, addressing its engine and cost-related issues.

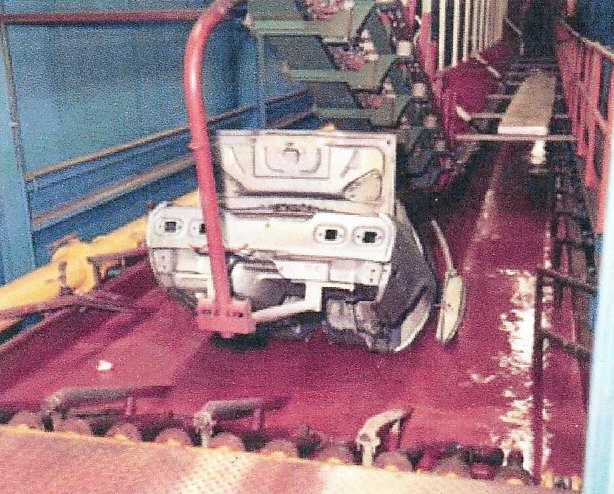

Fisher Body Division was very proud of its Elpo primering process, which should have prevented rust, but didn't. The Elpo process pioneered by Fisher, followed a seven stage zinc phosphate initial treatment and itself involved submerging the assembled Vega body in a vat containing reddish-brown paint-primer particles in 65,000 galllons of water. The metal bodies received a positive electrical charge, the primer particles carried a negative charge, and by leaving the body in the vat for two minutes even the most remote recesses get coated, theoretically. The body was then dried, wet-sanded, sealer-coated and finally sprayed with acrylic lacquer and baked in a 300 °F degree oven. In practice however, the Elpo dip did not flow to every recess or reach every surface. Vega expert Gary Darian said, "The design of the front end caused air to be trapped at the tops of the fenders, so they never got coated. Early cars had no inner fender liners, so the tops of the front fenders got blasted by sand and salt thrown up by the tires, and they quickly rusted." Derion pointed out, too, that a rust-prone gap existed between the front fenders and the cowl vent. "Moist debris and salt would pack into this area rusting through the metal in a few years."
Chevrolet installed stopgap plastic deflectors in late 1973 and full plastic inner fenders in 1974. The original design provided for the full inner fender liners from the beginning. But at a cost review meeting the finance department cancelled the liners, as they would have added $1.14 per side, or $2.28 per car to the product cost. One of the program objectives was to produce a 2,000-pound car to sell for $2,000.00, and every penny was watched. Five years later, after GM had spent millions to replace thousands of sets of rusted-out Vega fenders in the field, the plastic fender liners were reinstated as a mid-model change during the 1974 model year. But rust damage also affected the rocker panels, the door bottoms, the area beneath the windshield, and the primary body structure above the rockers. Darian added. "The front suspension cam bolts would sometimes rust solidly in place, which prevented alignment adjustments. To remove the cam bolts required lots of careful work with a cutting torch and all new parts."
Starting in 1976, extensive anti-rust improvements on the Vega's body included galvanized steel fenders and rocker panels and "four layer" fender protection with zinc coated and primed inner fenders and wheelwell protective mastic, zinc-rich pre-prime coating on inner doors, expandable sealer installed between rear quarter panel and wheel housing panel, and corrosion resistant grill and headlamp housings.
140 CID engine
The Vega was subject to two recalls early in its production run involving its 140 cubic inch engine. 130,000 cars fitted with L-11 option addressed a concern over backfiring caused by the two-barrel carburetor. The second recall, in the early summer of 1972, involved 350,000 cars with the standard engine driven by a perceived risk that a component in the emission control system might fall into the throttle linkage, jamming it open. Eudell Jackobson from GM engineering confirmed the problems involving the early two-barrel Rochester carburetor and engine valve-stem seals.
Jackobson said, "Because of the inherent second order unbalance of the four-cylinder engine, relatively soft engine mounts were required. Due to the soft mounts, the Vega engine sometimes shook to the extent that it would loosen the screws holding the top cover to the carburetor body. The top cover would then jump up and down, which activated the accelerator pump, which shot raw gasoline through the cylinders and into the exhaust system. Fuel would puddle inside the muffler and eventually explode; backfire. The early mufflers would blow out towards the fuel tank, so later ones were engineered so they'd blow away from the tank. We also started using Loc-Tite on the carburetor bolts."
In 1973 the Rochester two-barrel carburetor was replaced with a Holley-Weber design.
"After the engine had been in production for a while, customers would go back to the dealer complaining about oil consumption... the mechanic would peer down the bore scope and observe cylinder scuffing. We eventually found out that the problem had never been the scuffing of the (cylinder) bore. The real problem was the valve stem seals. They'd harden, split, fall off, and oil would leak down past the valves and into the combustion chamber. So we did some experiments. When we got an oil burner, we simply replaced the valve-stem seals, and that cured it."
1976-77 Dura-built engines had redesigned seals that reduced oil consumption by fifty percent.
The Vega's cooling system came in for criticism. Although non-a/c cars held only 6 quarts and had a tiny two-tube, 12 sq ft radiator, when topped off the cooling system was adequate. But most owners tended not to check the coolant level often enough, and in combination with leaking valve-stem seals the engine would often be low on oil and coolant simultaneously. This caused overheating which distorted the open deck block allowing antifreeze to seep past the head gasket, causing piston scuffing inside the cylinders. In response, Chevrolet added a coolant overflow bottle and an electronic low-coolant indicator in 1974 that could be retrofitted to earlier models at no cost. Under a revised 50,000 mi engine warranty for 1971–1975 Vegas, an owner with a damaged engine had a choice to have the short block replaced with a brand new unit or a rebuilt steel-sleeved unit. This proved costly for Chevrolet. GM engineer Fred Kneisler maintaines that too much emphasis had been put on overheating problems versus the real culprits: brittle valve stem seals and too-thin piston plating. Regardless of the cause, damaged cylinder walls were common.
Kneisler feels Chevrolet could have anticipated some of the Vega's problems had there been time to run what he call's "granny tests", more formally known as failure mode analysis — involves treating a car the way a "typical" grandmother would; i.e. ignoring coolant and oil levels, and rarely servicing anything. The granny test would have taken time, which the Vega's development engineers didn't really have. But apparently no one thought to run granny tests anyway. Kneisler confessed, "It astonishes me that not one of us thought about seeing what would happen if we ran out of water. Let's just see what happens. After the fact, it certainly seems reasonable, but it never occurred to us. And the test system back then didn't let things fail. If a test driver at the proving grounds didn't ever check one of those engines and let it run out of coolant...if it burned up, he'd get fired. The drivers were checking coolant every day, checking the oil, checking everything every shift."
1976-1977 Dura-Built 140 engines had improved engine block coolant pathways, longer life valve stem seals, redesigned head gasket, water pump, and thermostat, and a five-year/60,000 mi warranty.
Despite its lack of success with the Vega, the liner-less aluminum/silicon engine technology that GM and Reynolds developed turned out to be sound. Mercedes-Benz and Porsche both use sleeveless aluminum engines today. The metallurgy and finishing processes are slightly different, but the basic principles are those developed for the Vega engine.
Vega body styles were used to produce several rebadged variants. 1973–1977 Pontiac Astres used all Vega bodies (and Vega 140 CID engines through 1976). 1978–1979 Chevy Monza and Pontiac Sunbird wagons used the Vega Kammback wagon body with engines supplied by Pontiac and Buick. Chevy also offered the Monza 'S' for 1978 as a Monza price leader, using the Vega hatchback body.

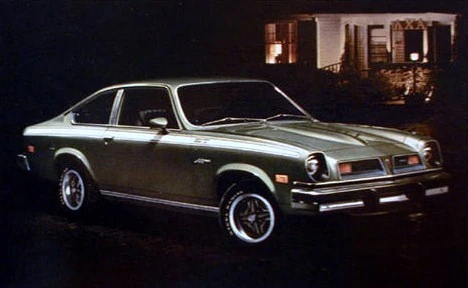

The Pontiac Astre, was introduced in the U.S. for the 1975 model year giving Pontiac dealers a needed fuel efficient subcompact. Pontiac's trademark split grill and front emblem, Astre nameplates, an upgraded interior trim and a Pontiac steering wheel with emblem helped to differentiate itself from the Vega. The SJ Hatchback and SJ Safari Wagon models feature soft nylon upholstery, cut pile carpeting, padded and cloth covered door panels, and a fabric headliner, plus rally instruments, the higher-output two barrel engine, four-speed (over a three-speed manual) gearbox or automatic and radial tires. A GT package option for the hatchback and Safari wagon combined the lower-line interior with the SJ's performance and handling features. 3,000 1975 "Lil Wide Track" packages were sold. The package includes a front air dam, rear spoiler, appliance wire mag rims, window louvers, a chrome exhaust tip, and bright stripe decals for the hood, body sides, rear spoiler, door handles, and wheel centers. 1977 models featured a new vertical design grill and aluminum wheels were a new option. The Astre Formula was introduced which included the handling package, chrome valve cover, three-piece spoiler, Formula T/A steering wheel and special decals. The Astre used the Vega 140 CID engine through 1976. The Pontiac 151 CID (2.5 L) OHV Iron-Duke inline-four engine was used for the final 1977 model year. Transmissions are the three- and four-speed manual, five-speed manual with overdrive (1976–1977 option) and the three-speed automatic.
The Chevrolet Monza 'S produced for the 1978 model year used the Vega hatchback body style. With the Vega nameplate canceled, the Monza 'S' was marketed as a price leader for the Chevy Monza line. The rebadged hatchback had the new Monza front end header panel and grill with Chevy bowtie emblem, steel front and rear bumpers replaced the Vega's aluminum bumpers. Monza front fender nameplates, and a two-spoke color keyed steering wheel with Monza emblem. White-wall tires and full wheel covers were standard as were bumper rub strips. In addition, there was an expanded engine availability. Pontiac's 151 CID OHV 'Iron-Duke' in-line 4 was standard. A choice of two V6 engines were available. Buick's 196 CID 90 hp V6 and 231 CID 105 hp V6. The four-speed manual was standard with all engines. The five-speed manual with overdrive and three-speed automatic transmissions were optional.

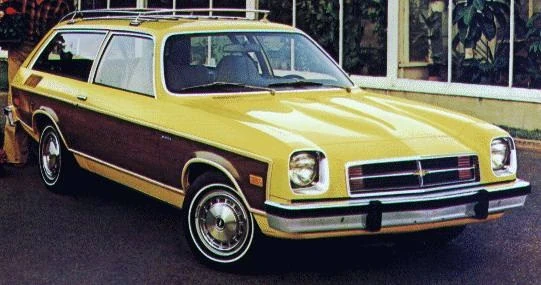

The Chevrolet Monza Wagon produced for the 1978–1979 model years used the Vega wagon body style. The rebadged wagon had the new Monza front end and grill and front and rear steel bumpers, front fender namplates and the Monza steering wheel with emblem. White-wall tires, full wheel covers and bumper rub strips were standard equipment. The Monza Estate, like the Vega Estate wagon it replaced, features wood grain sides and rear trim with outline moldings and the custom interior. Monza wagon models included, as standard, the 151 cu in I-4. The 196 CID and 231 CID V6 engines were optional. The four-speed manual was standard with all engines. The five-speed manual with overdrive, and three-speed automatic transmissions optional.

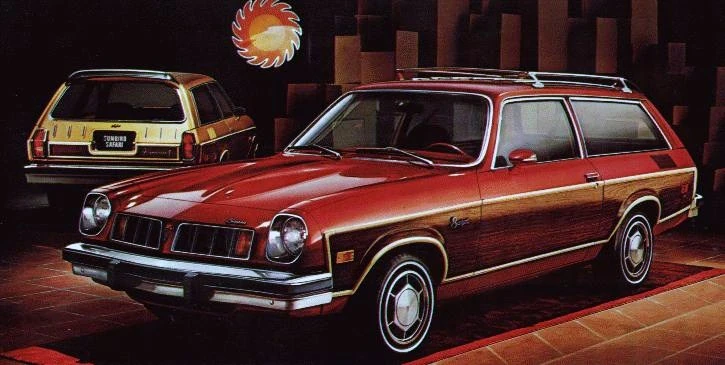

The Pontiac Sunbird Safari Wagon produced for the 1978–1979 model years used the Vega wagon body style. It replaced the discontinued Pontiac Astre Safari wagon which was essentially carried over with Sunbird badging. The Sunbird wagon retained the Vega/Astre aluminum bumpers, unlike the Monza wagon, which featured a new front end and steel bumpers, but the 1979 model featured a revised horizontal styled grill. Standard powertrain was Pontiac's 151 cubic inch inline-four with a four-speed manual transmission. Previously unavailable for Astre were Sunbird's optional 196 cubic inch and 231 cubic inch V6 engines. Five-speed manual and three-speed automatic were transmission options.
|1975–1977 Pontiac Astre||147,773|
|1978 Chevrolet Monza 'S' Hatchback||2,326|
|1978–1979 Chevrolet Monza Wagon||41,023|
|1978–1979 Pontiac Sunbird Wagon||11,336|
note: 1973–1974 Pontiac Astre (GM of Canada) N/A
